1. Leave spreadsheets behind and stop relying on one person
Anyone who makes downpipe bends and offsets manually knows the routine: measure the pipe, do the calculations, check the table, mark the measurements, bend the pipe and hope the result matches the expected dimensions. It works, but it means constantly relying on spreadsheets and paper charts and, in many workshops, depending on the one person who knows how to make these parts.

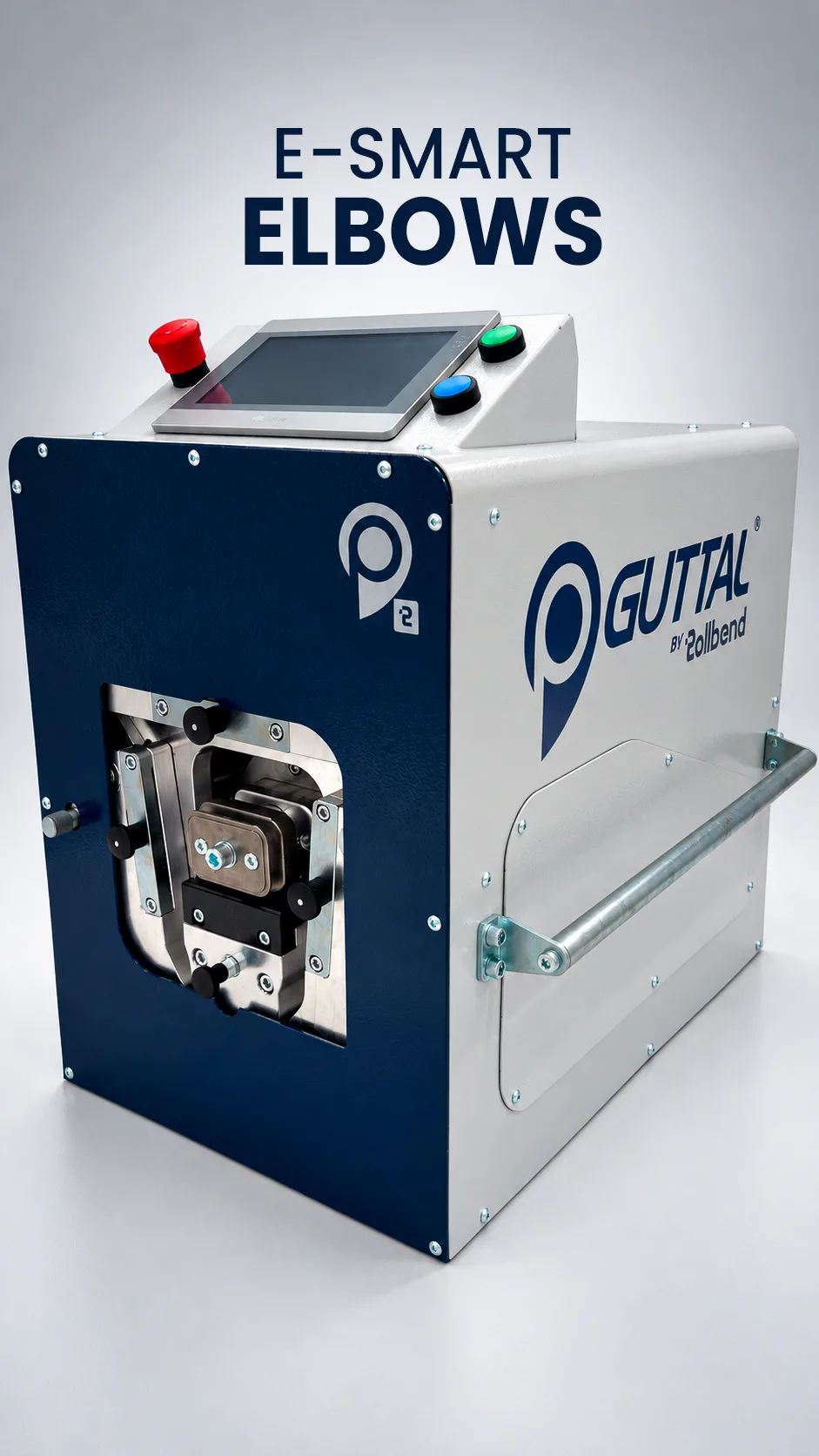

The E-SMART ELBOWS eliminates that dependency. Simply enter the offset value and the machine automatically calculates the required pipe length.
In practice, this means:
- No more tables or paperwork for every measurement: all calculations are handled directly on the machine's screen.
- Less room for calculation errors and fewer wasted parts due to measurement mistakes.
- Less time spent measuring and checking, and more time spent producing.
For a gutter manufacturing workshop, time spent on calculations and double-checking is time that cannot be billed.
2. Any operator can make bends and offsets
When only one person knows the process, an absence or sick leave can delay orders. The E-SMART ELBOWS features a touchscreen that guides the operator step by step, with an interface available in four languages: Portuguese, English, French and Spanish.
The process takes just five steps:
- Select the interface language.
- Choose the pipe type and the required configuration.
- Set the parameters: the bend angle or the offset value, in cm.
- Insert the pipe into the die and press START.
- Wait for the cycle to finish, with completion confirmed on the screen.
With every step displayed on the screen, training new operators becomes easier and production no longer depends on a single person.
3. Greater versatility in a single machine
Not every order requires the same part. The E-SMART ELBOWS produces bends and offsets in front or side configurations and works with both rectangular and round downpipes.
What you can select on the screen:
- Pipe sizes: 60x80, 75x105, Ø80 and Ø100.
- Bend or offset, in front or side configurations.
- Bend angles of 30°, 45°, 70° or 90°, with advanced options for specific applications.
- Optional compensation when required by the job.
This allows you to handle a wide range of jobs with a single piece of equipment, without turning down orders simply because they require a different size or configuration.
4. Quick setup, safe operation and a compact footprint
In a workshop, time lost on adjustments and tool changes adds up throughout the day. The E-SMART ELBOWS is designed to make tool changes quick and completely tool-free.
Safety is also built into the touchscreen interface:
- Warning when the emergency stop is activated, with instructions on how to reset the machine.
- Jam detection, with instructions for releasing and ejecting the pipe.
- Compact dimensions (650 x 371 x 582 mm) and a net weight of 115 kg, allowing the machine to fit into a workshop without taking up too much space.
- Single-phase 230 V power supply and 2.3 kW installed power.
In other words, a machine that is easy to install and alerts the operator whenever intervention is required.
Invest in simplicity, not just equipment
A machine for producing bends and offsets is more than just an equipment purchase: it is a decision that affects delivery times, your dependence on specific employees and the time your team spends on calculations. The longer you continue relying on tables and paperwork, the more time you leave on the table.
At Rollbend, we help workshops and manufacturers choose the right solution for the work they do. No exaggerated promises, just equipment that makes sense for your business.
Want to see the E-SMART ELBOWS in action? Discover the E-SMART ELBOWS bending machine and request a demonstration from our team, or contact us at geral@rollbend.pt.
